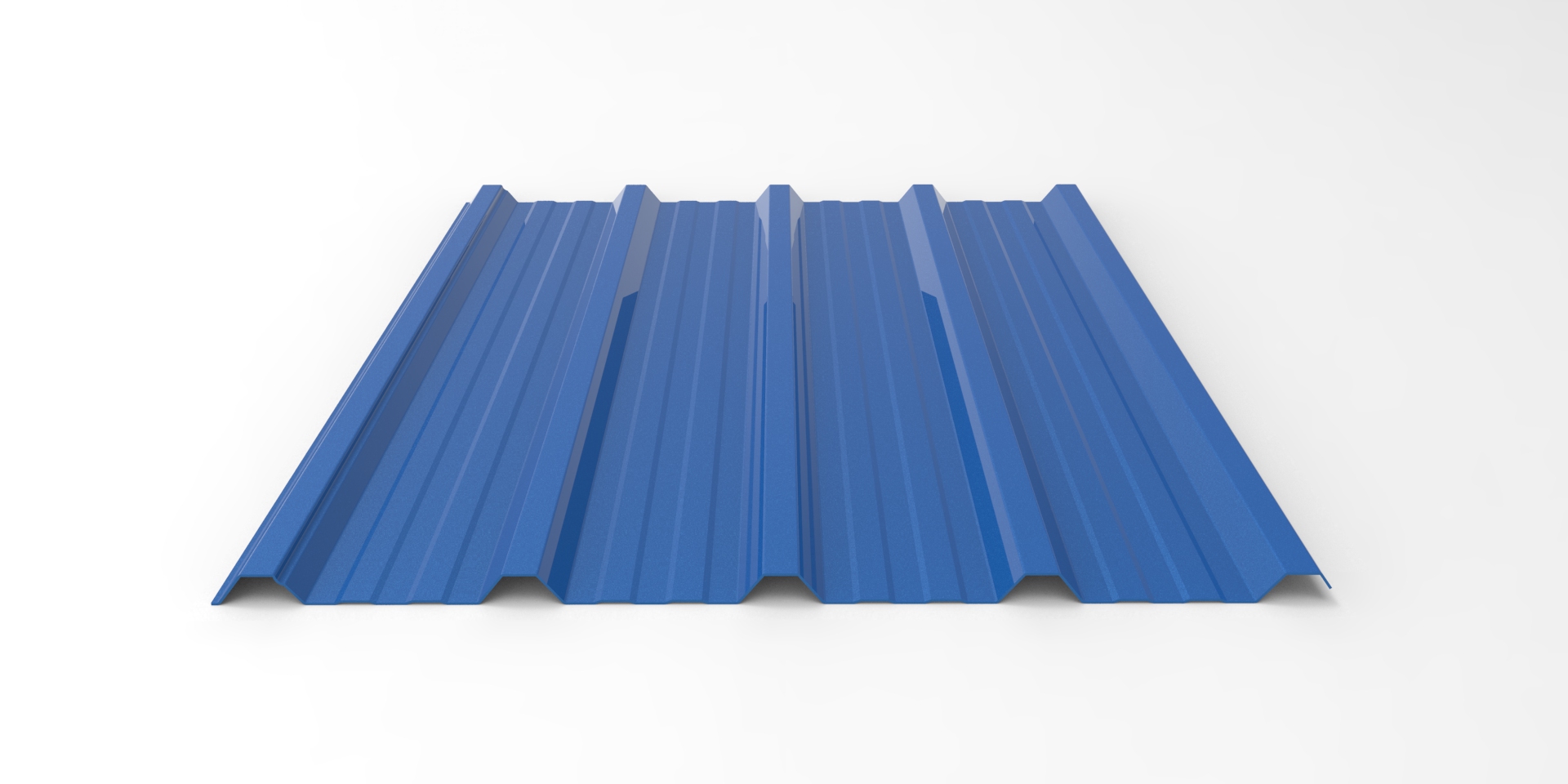

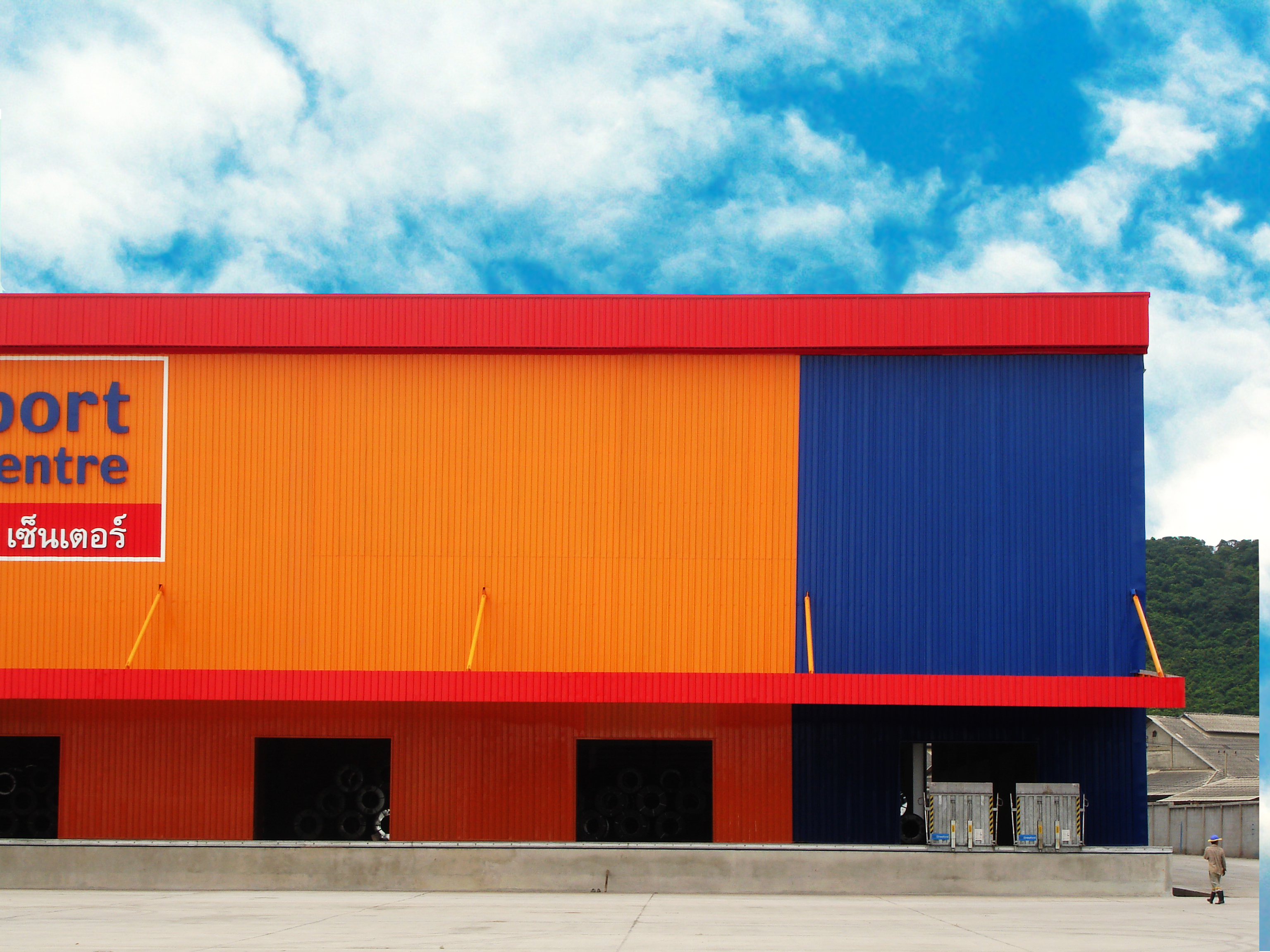

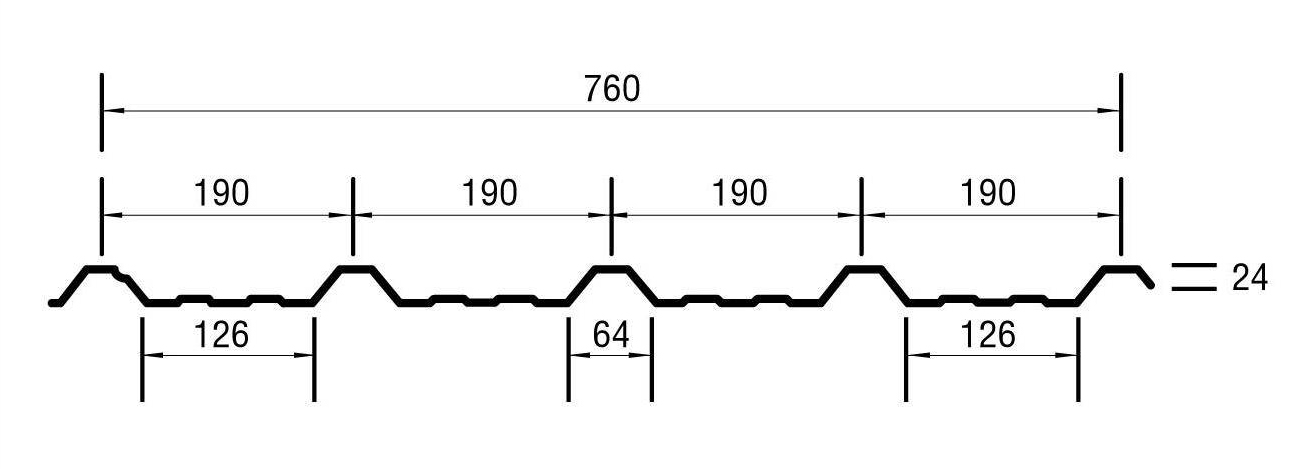

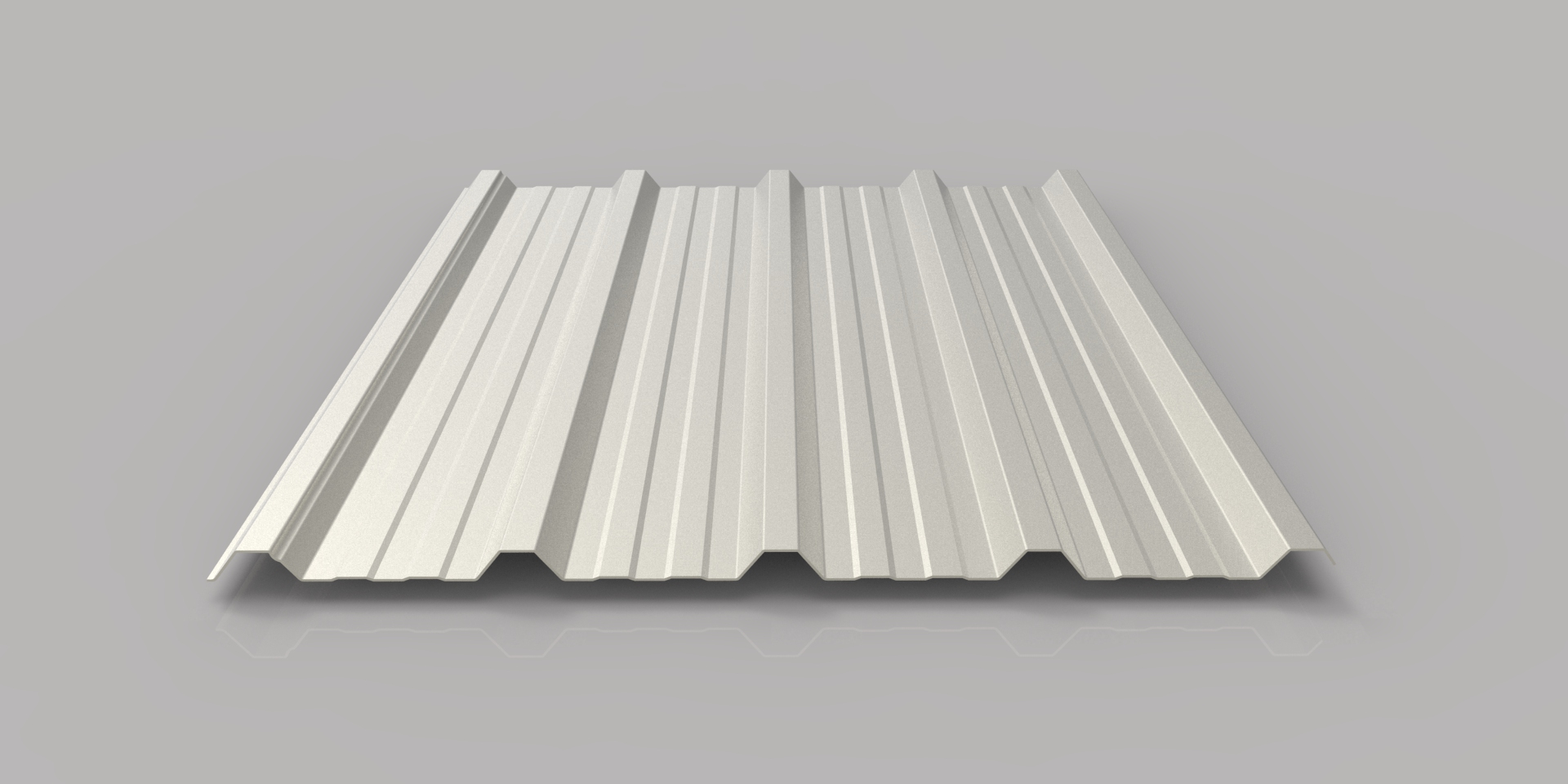

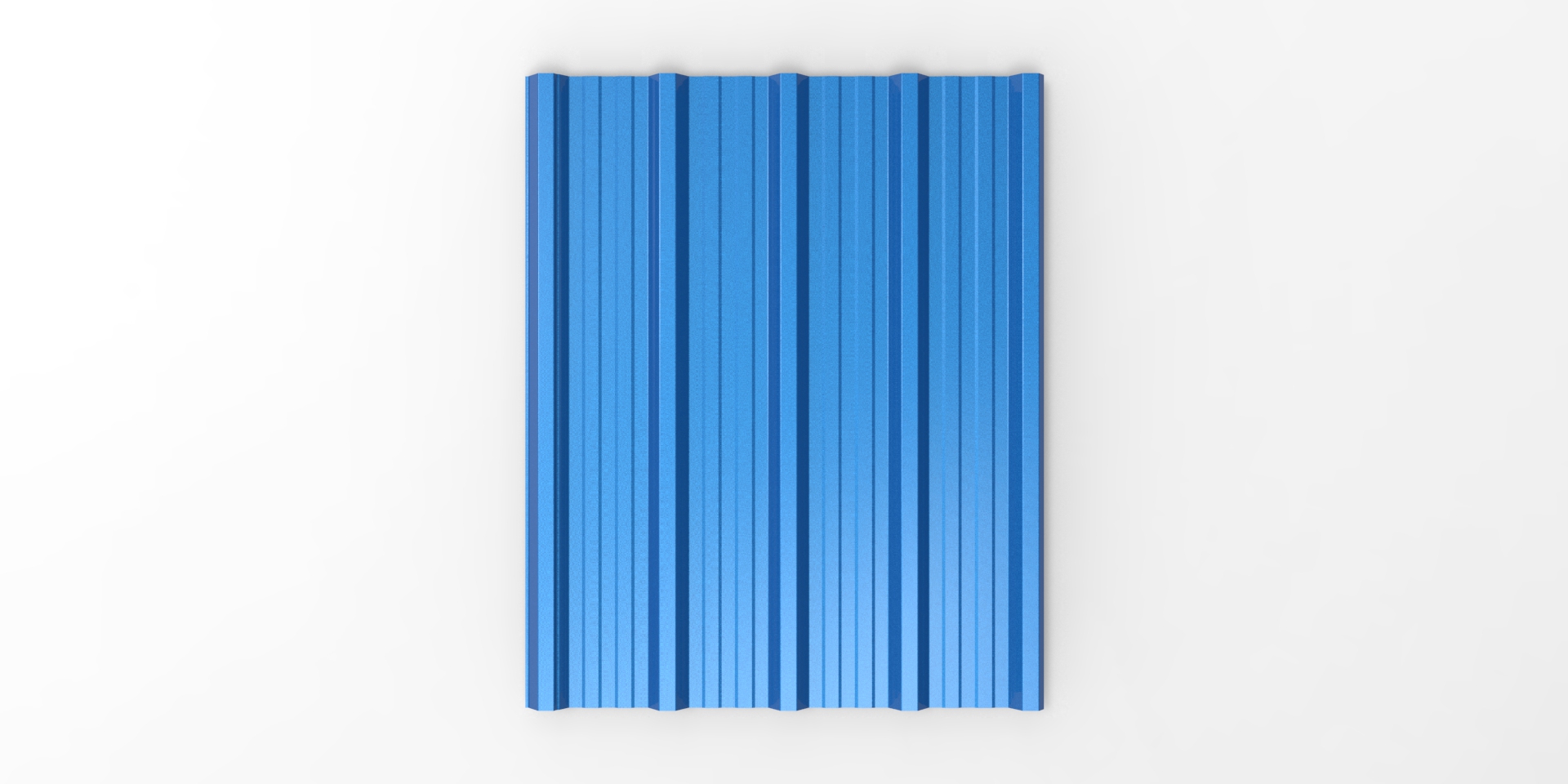

Top roofing model which can be used versatilely as roof and wall. It is inexpensive. With the width as wide as 760mm after the overlay, it can support good amount of rainfall (depending on type of the building, please consult).
TBR 760B internal vent are designed to prevent some amount of water after the overlay in case of heavy rain.
Thickness
(mm) |
Weight | Moment of Inertia
1x(cm 4/m) |
Section Modulus
Zz(cm 3/m) |
|
---|---|---|---|---|
Kg/m | Kg/m 2 | |||
0.40 | 2.87 | 3.77 | 6.46 | 1.45 |
0.50 | 3.59 | 4.72 | 8.08 | 1.84 |
0.60 | 4.30 | 5.67 | 9.69 | 2.23 |
ROOF TYPE | RADIAL ROOF | ARC ROOF | SPRUNG ROOF |
---|---|---|---|
TBR-760 B | R≥0.20 m. | R≤55.00 m. | R≥56.00 m. |
