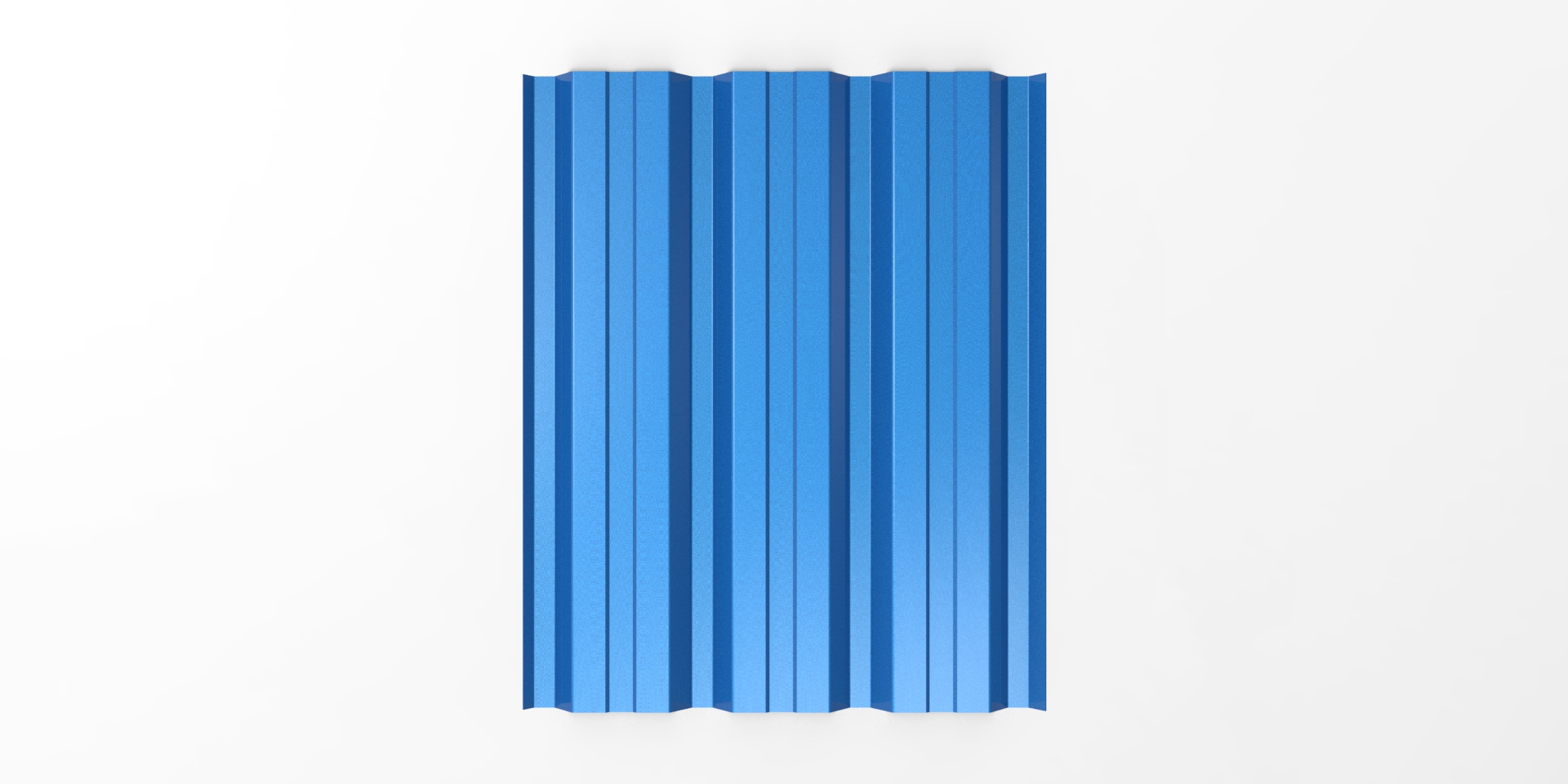

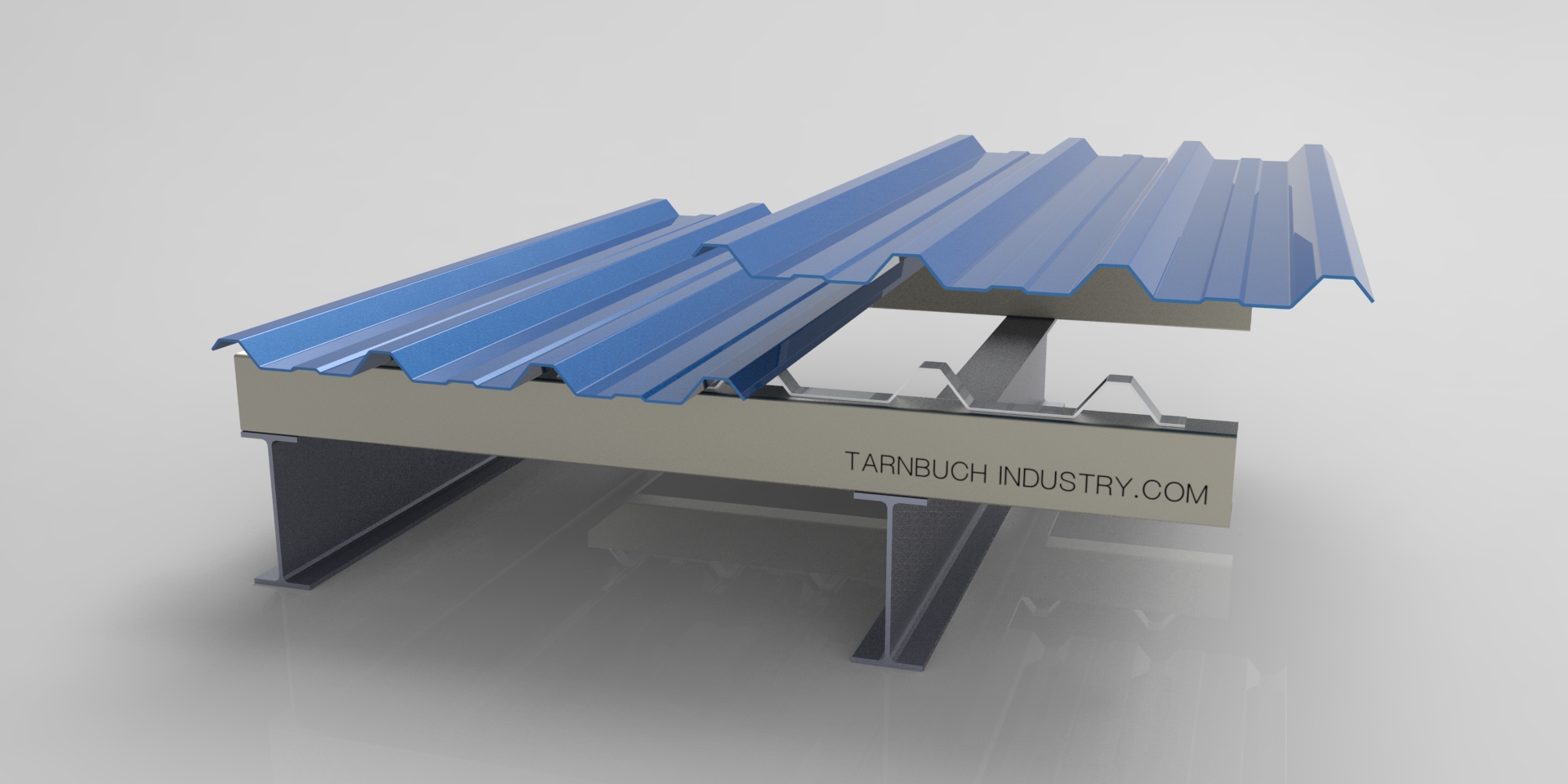

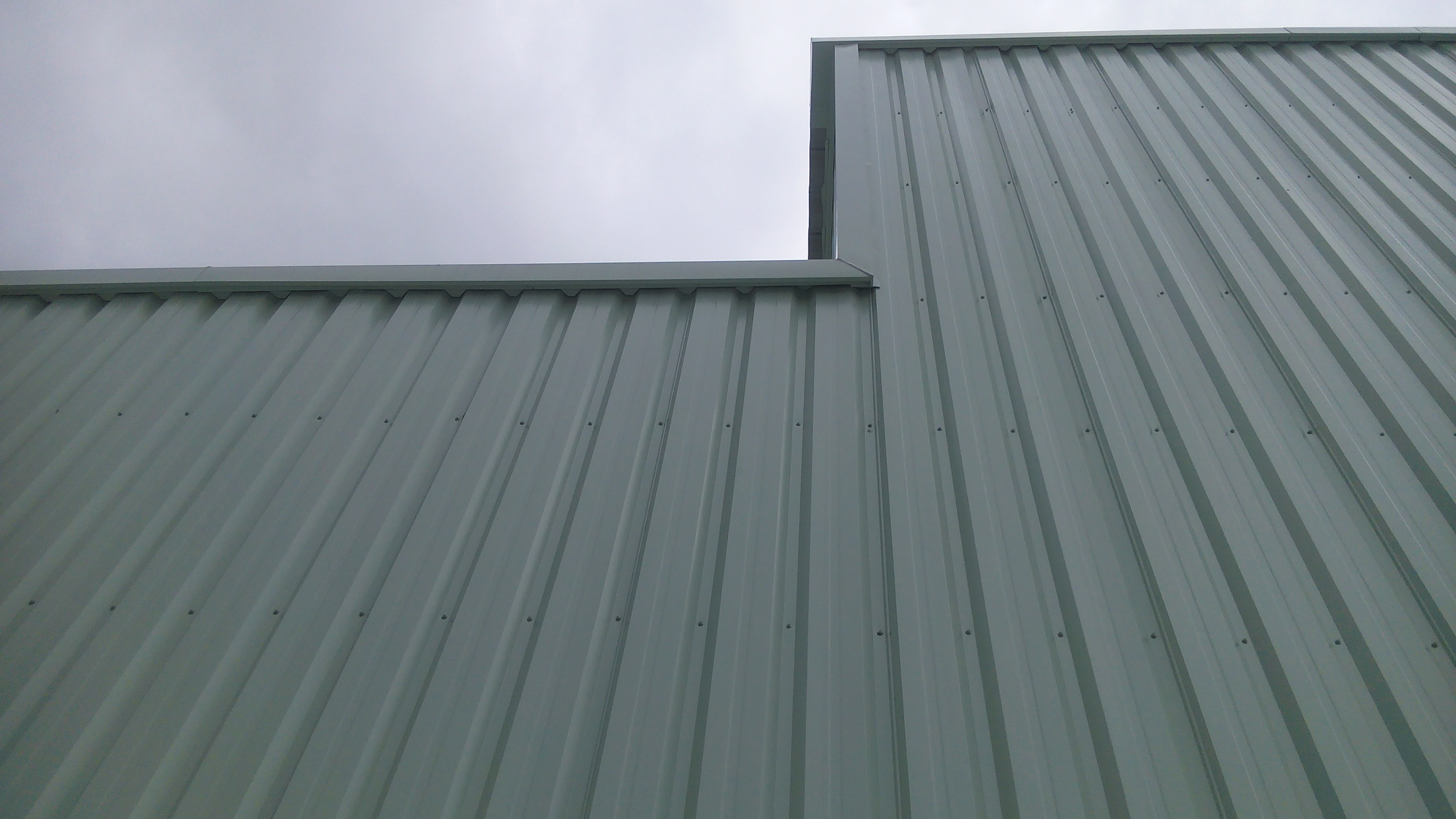

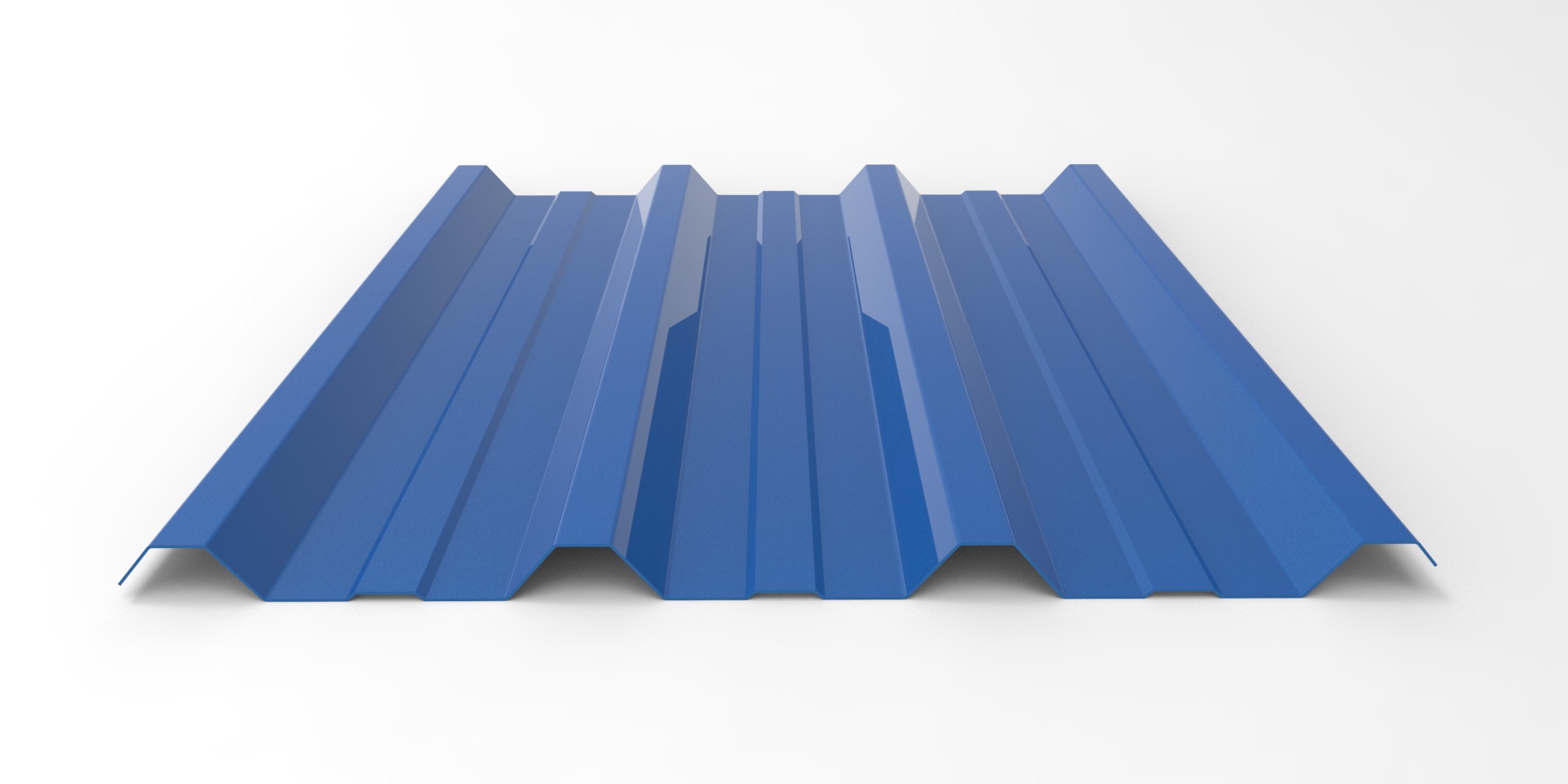

This roof is a versatile model. It can be a good roof to accommodate the rainfall (recommend to pair with connector). It can be used as a wall and can be rolled or curve roll for beauty.
| Thickness
(mm) |
Weight | Moment of Inertia
1x(cm 4/m) |
Section Modulus
Zz(cm 3/m) |
|
|---|---|---|---|---|
| Kg/m | Kg/m 2 | |||
| 0.40 | 2.87 | 3.83 | 11.38 | 4.73 |
| 0.50 | 3.59 | 4.79 | 13.68 | 5.68 |
| 0.60 | 4.30 | 5.74 | 16.38 | 6.82 |
| ROOF TYPE | RADIAL ROOF | ARC ROOF | SPRUNG ROOF |
|---|---|---|---|
| TBR-750 B | R≥0.35 m. | R≤55.00 m. | R≥56.00 m. |
